Compose: Architectural Cove Lighting
Compose is a high-performance architectural cove lighting system engineered to transform ceilings and surrounding surfaces into comfortable sources of indirect illumination.
Volumetric. Comfortable. Light.
A Mounting Solution for Every Detail
Soft Corner Coves
Only by i2Systems
Downloads
The Ultimate "A"
Compose is a high-performance architectural cove lighting system designed to deliver comfortable indirect illumination from a concealed linear source. Its precision asymmetric optical system projects light efficiently across ceilings and surrounding surfaces, transforming the architecture into the primary source of illumination.
Lighting for the Future
Precision optics enable comfortable, energy efficient illumination for your space coupled with beautiful tunable whites, colors, and warm dimming. Add in seamless control system integration through standard non-proprietary protocols.
Architectural Infrastructure
Go beyond the light fixture with miniature form factors that disappear into the architecture.
Built for the Digital World
Advanced software enables instant specifications, drawings, and quotations.
Trusted by leaders in their industry. Proven to meet the highest standards.
Architectural Infrastructure
Compose is designed as an architectural lighting system rather than a linear luminaire applied after the cove has been built. The compact light engine, integral power architecture and coordinated mounting components allow the source to remain concealed while preserving the dimensions required for effective indirect illumination.
A Mounting for Any Occasion
Prefabricated mounting components reduce the variability associated with field-built coves while helping maintain consistent setbacks, elevations and sightlines. This allows the indirect lighting distribution to perform as intended across straight runs, corners and transitions.
Gypsum Cove
Gypsum Wash
Wall Mount
Wall Wash
Universal
Stand Alone
ACT Cove
The Profound Power of Light

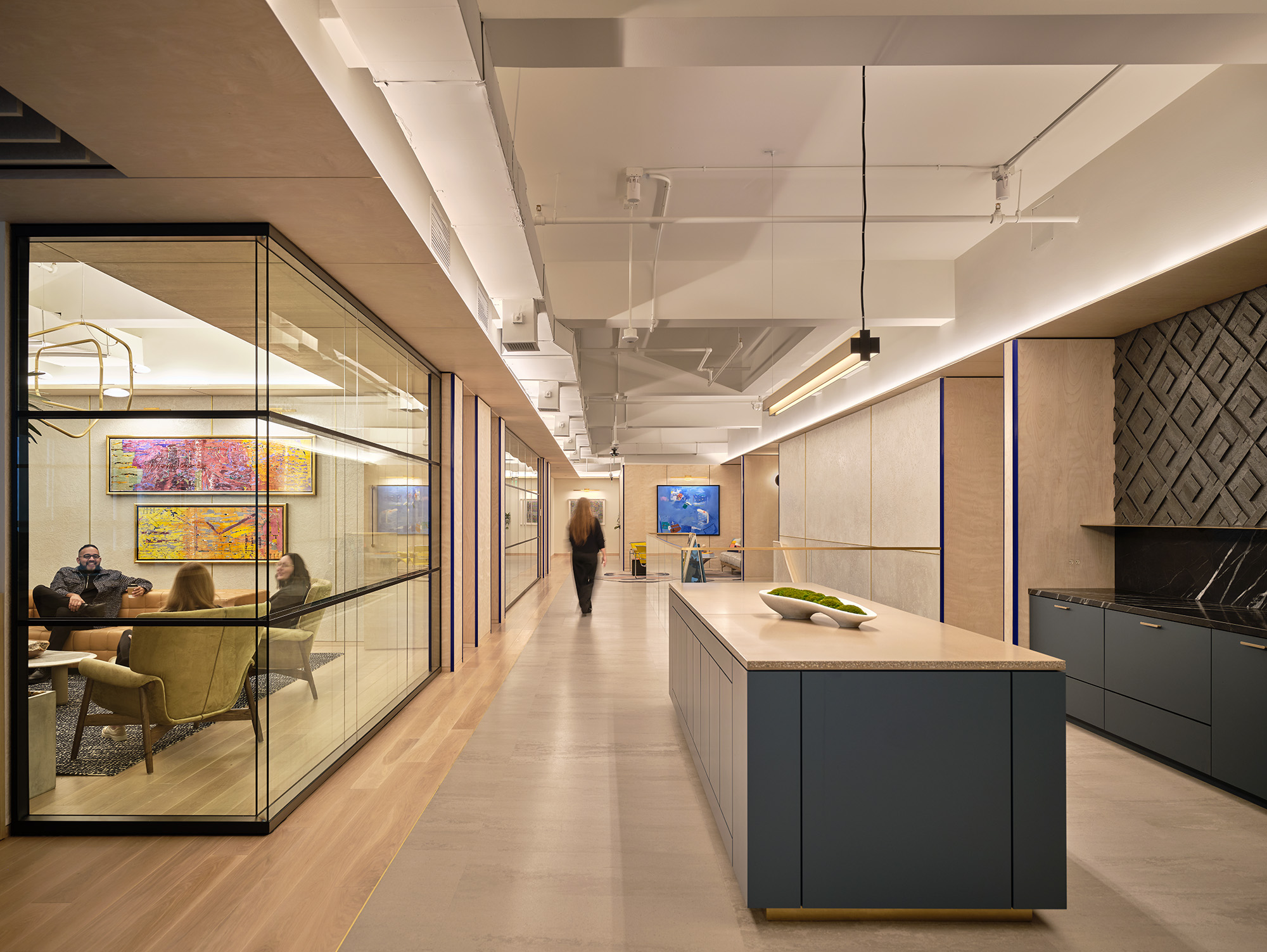

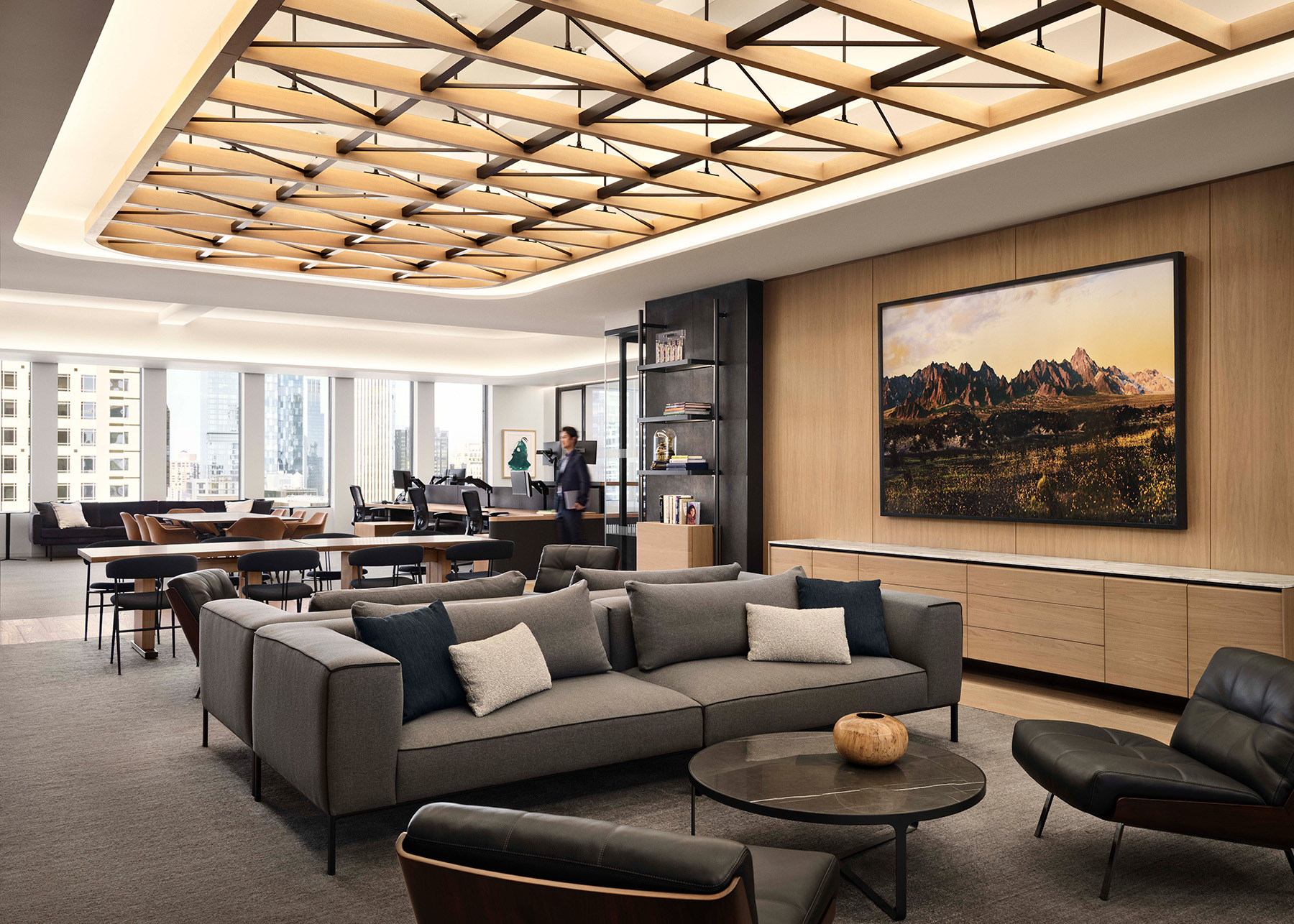

These installations demonstrate how architectural cove lighting can provide general illumination while remaining visually integrated with the interior. The concealed source allows the illuminated architecture, rather than the luminaire, to become the primary visual experience.
Soft
Affordable & Easy to Use Ceiling Light Coves
Explore the possibility of endless geometries, and make your design statement with a full standard offering of soft corners coves and curves.
Fully Lit Mitered Corner
Our fully mitered corners are designed to eliminate dark spots or hotspots characteristic of legacy linear lighting system.
A Universe of Flexible Geometries
Open Plan
Private Offices
Circulation Areas
Breakout Spaces
Meeting Areas
Elevator Lobbies
The Invisible
Say Good-Bye
to unsightly Air Returns
at no added cost.
Our Advanced
Designed to offer an efficient, indirect lighting distribution that delivers the necessary light levels on the work plane while creating visual comfort without increased energy consumption.
Patented Optical LED Lighting System
Real data is the core of our work, and we are not afraid to show it. Just try out our actual AGI32 data.
Lumen Visualizer
CRI
Beam
Watts/ft
Fit for WELLness
Compose is an indirect lighting system designed to meet the key lighting requirements of the WELL Standard V2. It provides the appropriate circadian programming for effective EML (L03) while ensuring sufficient illuminance at the work plane for task execution and avoidance of glare (L04). Additionally, it satisfies other features such as L07 - Visual Balance, L08 - Light Quality, and L09 - Occupant Lighting Control.
Compose is an indirect lighting system designed to meet the key lighting requirements of the WELL Standard V2. It provides the appropriate circadian programming for effective EML (L03) while ensuring sufficient illuminance at the work plane for task execution and avoidance of glare (L04). Additionally, it satisfies other features such as L07 - Visual Balance, L08 - Light Quality, and L09 - Occupant Lighting Control.
Lighting Module Specifications
Asymmetric Beam
Patented Optical System
Light Quality
92+ CRI , 98+ CRI. 2 Step MacAdam Ellipse
Plug & Play
Up to 150' from a single power source
High Efficacy
Over 100 Lumens per Watt
0.1% Dimming
Flicker Free
Programmable Power
2W/ft. - 12W/ft. (Static White)
5W/ft. - 12W/ft. (WarmDim & Tunable i2 ColorDemand)
Line Voltage
120-277VAC
Multiple Lengths
12”, 18”, & 48”
Enable any made-to-measure field application.
Safety
cUL
Technology Inside
Compose lights surfaces, and surfaces define the perception of your space. That's why we've designed Compose to integrate our latest color technologies including our WarmDim Collection with Dynamic Mixing and our Tunable i2 ColorDemand---- all with minimum CRIs of 92 and perfect color consistency.
i2 ColorDemand... Beyond Tunable
The Cove is Now Connected.
Enabling smart, wirelessly controlled spaces with direct communication and power to remote sensors in a single integrated system.
Controls Integration
Specifications for the Digital World
The Future of Specs
On Demand Manufacturing
From your digital design to our production floor, the engine behind Compose's unmatched level of flexibility.
A Complete Collection for Color Consistency and Technology Throughout Your Space
Graphite
Small Form Factor, High Performance Exterior Linear Luminaire
Runway
High Precision, High Performance Luminaire for Grazing, Wall Washing, and General Illumination.
i2Cove
Professional Grade Cove Lighting
